IP67 Outdoor PoE Surge Protector, 16KV Surge Protection for PoE+ Device Such as IP Camera, Access Point

Price: $59.76
(as of Aug 28, 2025 16:41:59 UTC – Details)

Product description

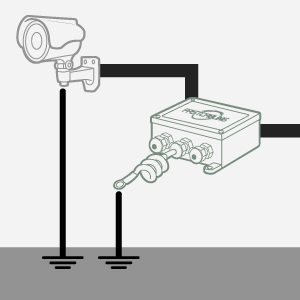

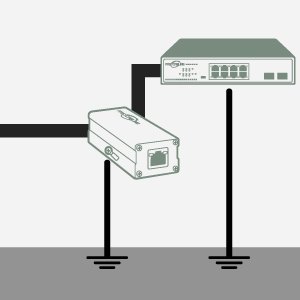

Also Grounding Your IP Device

If it is possible, always ground your IP device behind the surge protector. There is still about a 10% surge that will pass the surge protector and reach your devices.

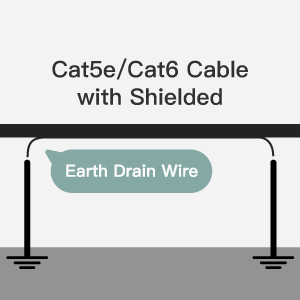

Deal with Cat5e/cat6 with Shielded

The Shielded can reduce the surge being absorbed by the twisted pairs cable only if you have grounded the shielded independently. Don’t link the shield to the surge protector.

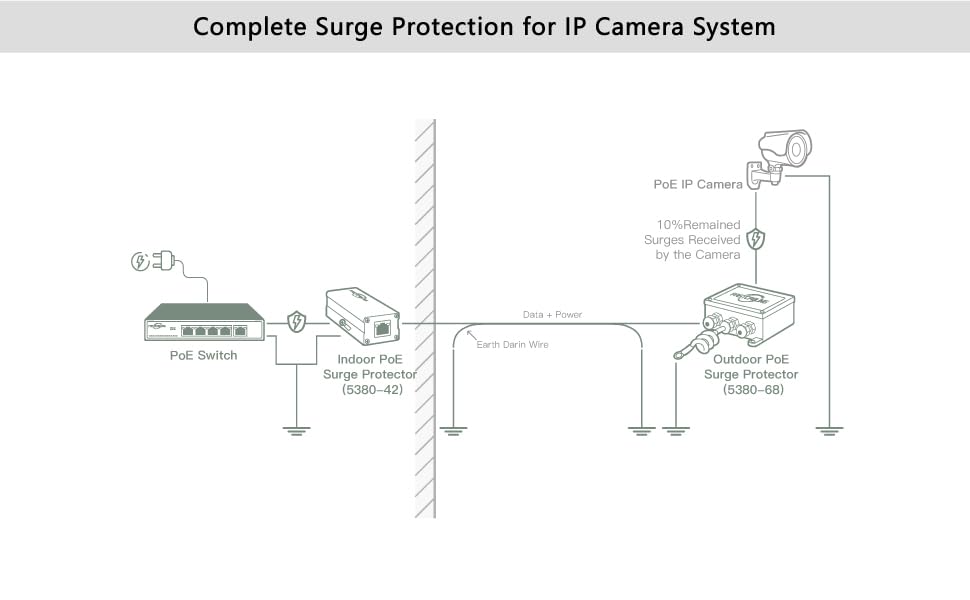

Add the surge protector on both ends

The cat5e/cat6 cable may absorb the surge and run to both ends. Not only the edge needs a surge protector, but the back-end will also need protection as well.

Technical Specifications

Pass Through Data Rates 10/100/1000 Mbps Max Discharge Current (8/20us) 8KA,16KV Maximum Operation DC Voltage 60VDC Compatible standard IEEE802.3af/at Maximum Operation DC Current 1A for 2 pair, 2A for 4 pair, 95W maximum Common Mode (10/700us) 20KV Differential Mode (10/700us) 4KV Clamping Voltage(Line to GND) 450V Clamping Voltage(Line to Line) 20V Response Time 5ns Operating Temperature -40°C~ 85°C (-40°F~ 185°F)

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

—

—

—

5.0 out of 5 stars 2

5.0 out of 5 stars 1

3.6 out of 5 stars 13

Price

— no data
$59.76$59.76 $35.63$35.63
— no data

— no data
$159.60$159.60

PoE Standard
IEEE802.3af/at IEEE802.3af/at no data
802.3af/at/bt 802.3af/at/bt 802.3af/at/bt

PoE Budget
no data
no data
no data
30W 60W 71W

Network Speed
10/100/1000 Mbps 10/100/1000 Mbps no data
10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps

Surge Protection
no data
no data
no data
Differential mode ±4kv, Common mode ±6kv Differential mode ±4kv, Common mode ±6kv Differential mode ±4 kv, Common mode ±6 kv

Wall Mount
no data

✓

✓

✓

✓
no data

Waterproof Rating
no data
IP68 IP68 IP67 IP67 no data

Operating Temperature
-40°C~ 85°C -40°C~ 85°C -40°C~ 85°C -40°C ~ 75 °C -40°C ~ 75 °C -20°C ~ 70 °C

Supports PoE network switches complied with 802.3af/at standard
Up to 16KV surge protection, Reliable protection for Ethernet cable and network devices

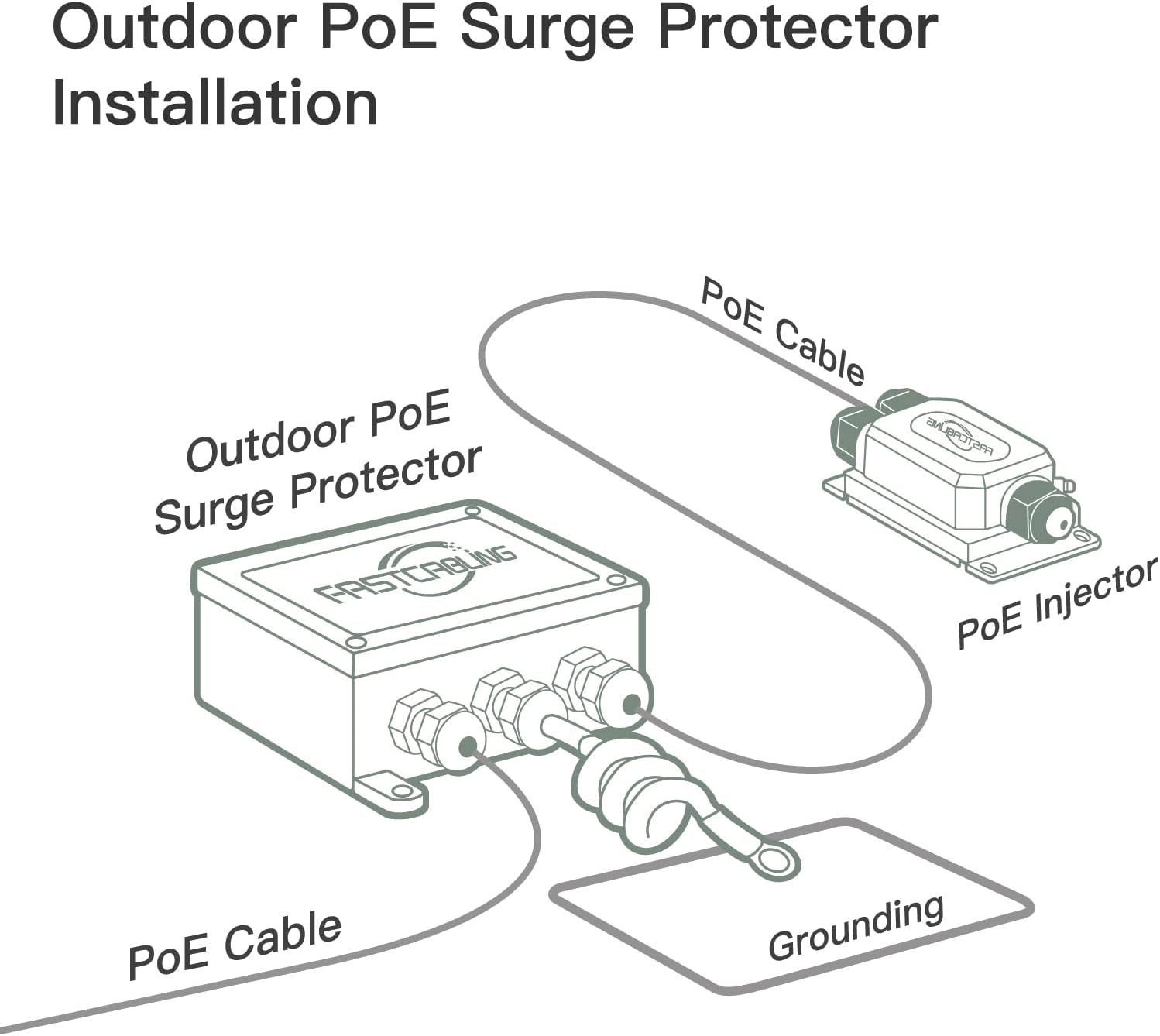

IP67- rated waterproof design,Weatherproof metal enclosure, Terminal block for waterproof connection
Wide operating temperature from -40°C to 85 °C
Flexible wall or pole-mounted
