5 Port 2.5G Ethernet Switch with 10G SFP+ Uplink,1000/2500Mbps，Unmanaged 2.5Gb Network Switch, Plug & Play, Desktop/Wall-Mount, Fanless Metal Design.

Price: $34.99
(as of Aug 27, 2025 09:33:50 UTC – Details)

Product description

6-Port 10G SFP+ Uplink 2.5G Ethernet Switch

5× 10/100/1000/2500 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX 1x 1/2.5/10G SFP+ Uplink PortPlug and play, no configuration neededDurable metal casing, desktop/wall-mounting options, and a fanless designIEEE 802.3x flow control provides reliable data transferGreen Ethernet technology reduces power consumption

10 Gigabit uplink 2500Mbps Ethernet Switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the PL-SH1105 can process data at a rate of up to 5000Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology,can save power consumption, making it an solution for your home or office network.

Product Description

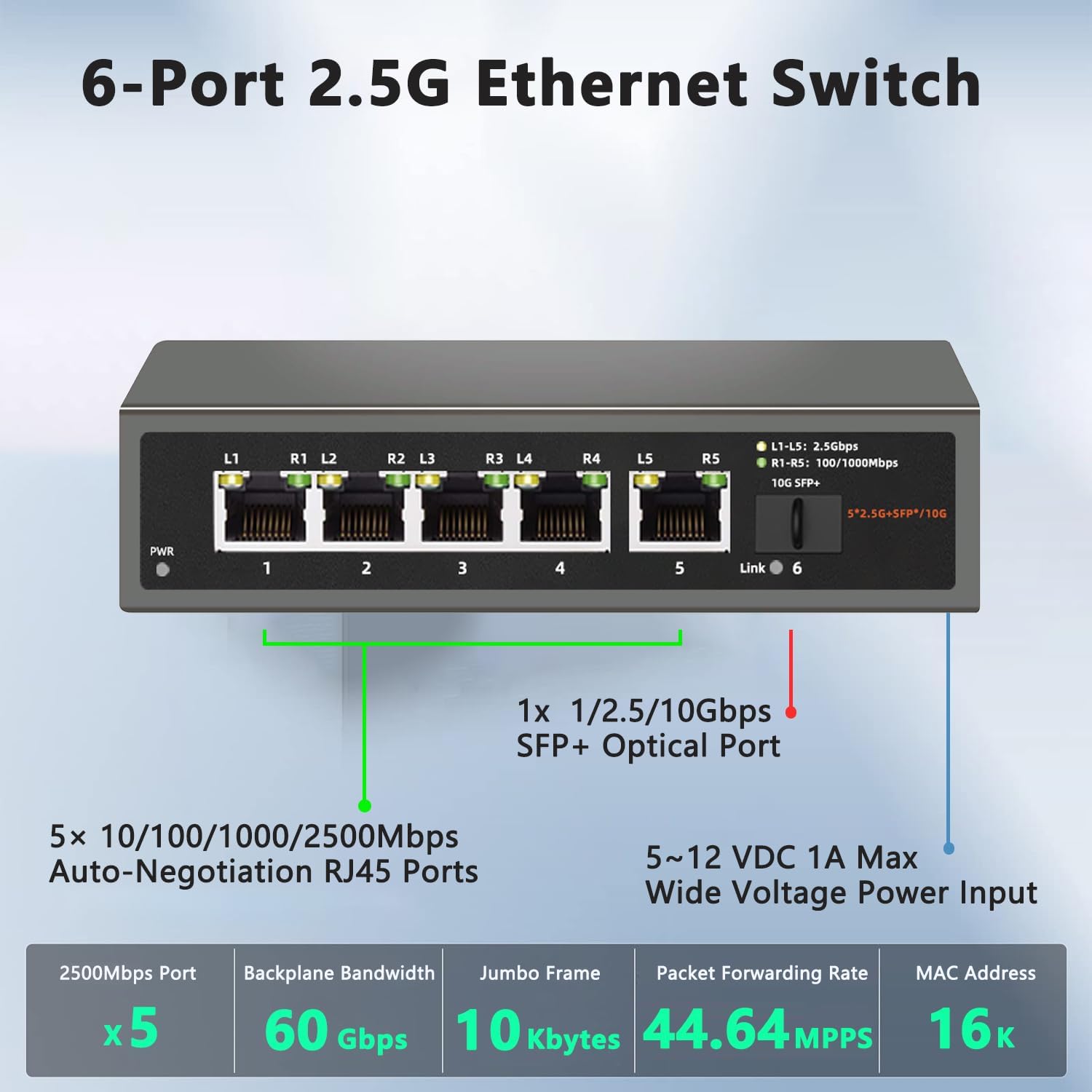

· Interface: 5x 10/100/1000/2500Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX （1x 1/2.5/10Gbps SFP+ Uplink Port ）

· External Power Supply: External Power Adapter(Output: 5~12VDC )

· Standards and Protocols: IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab、IEEE 802.3bz

· Fan Quantity: Fanless

· LED Indicator: System Power Link/Act indicators per port built into each RJ-45 port

· Switching Capacity：60Gbps

· Packet Forwarding Rate: 44.64 Mpps

· MAC Address Table: 16K

· Jumbo Frame: 16K

·Transfer Method: Store and Forward

·Working temperature: 0–50 °C (32–122 °F)

· Storage temperature: -40–70 °C (-40–158 °F)

· Working humidity: 10–90% RH non-condensing

· Storage humidity: 5–90% RH non-condensing

High Performance

·PULVISION Switch Featuring non-blocking switching architecture,forwards and filters packets at full wire-speed for maximum throughput. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make work reliably.

· Interior components are protected by high-quality metal casing to ensure a product longevity. Having passed an array of stringent reliability tests, delivers switching performance you can depend on.

· PULVISION’s latest generation of Unmanaged Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint.

Package content:

· 1x 6-Port 2.5G Ethernet switch

· 1x Power Adapter

· 1x Installation Guide

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.5 out of 5 stars 8

4.5 out of 5 stars 8

4.5 out of 5 stars 8

4.5 out of 5 stars 8

4.5 out of 5 stars 8

Price

$10.99$10.99 $12.99$12.99 $31.99$31.99 $34.99$34.99 $44.99$44.99

RJ45 Port
5×10/100/1000Mbps 8×10/100/1000Mbps 4×10/100/1000/2500Mbps 5×10/100/1000/2500Mbps 8×10/100/1000/2500Mbps

SFP+ Port
– no data
– no data
2×1/2.5/10Gbps 1×1/2.5/10Gbps 1×1/2.5/10Gbps

Metal Shell

✓

✓

✓

✓

✓

Switching Capacity
10Gbps 16Gbps 60Gbps 60Gbps 60Gbps

Packet Forwarding Rate
7.44Mpps 11.904Mpps 44.64Mpps 44.64Mpps 44.64Mpps

5~12V Wide Voltage

✓

✓

✓

✓

✓

Lightning Protection Level
4KV 4KV 6KV 6KV 6KV

Fanless Design

✓

✓

✓

✓

✓

Dimension (inch)
3.94×2.61×0.91 5.43×3.11×0.99 5.24×2.59×1.29 5.24×2.59×1.29 7.76×2.59×1.14

Plug and Play
no data
no data

✓

✓

✓

【5 Port 2.5G Switch】Equipped with 5 10/100/1000/2500Mbps RJ45 adaptive ports, Equipped with 1 1/2.5/10G Uplink SFP+ port, 60Gbps switching capacity to meet the broadband needs of more devices, build more stable and larger network,supporting full/half duplex self negotiation transmission mode, seamless Ethernet connection, expand network capacity and provide ，more stable and efficient data transmission between ports.
【Unmanaged Switch】Each port supports MDI/MDIX auto-flip and duplex/rate auto-negotiation, compliant with IEEE802.3、IEEE802.3i、IEEE802.3x、IEEE802.3z、IEEE802.3ab、IEEE802.3ae，IEEE802.3bz ethernet standards, Excellent data forwarding performance.
【Plug and Play】Fool type switch，PLUG-AND-PLAY – Easy setup with no software installation or configuration needed. LED panel indicator, dynamic display device connection and running status, installation and maintenance are very simple, more convenient to use.No need to upgrade to Cat6 cabling, instantly upgrade to 2.5 Gbps performance, reducing cabling cost and hassle.
【Metal Shell】The switch is shaped of very delicate and compact size, appearance.Adopts multi-layer baking varnish low-temperature process, which can adapt to the bad environment of 0℃-50℃, does not rust, and is corrosion-resistant.Supports desktop and wall installation.Green Ethernet technology to save power consumption. No fan silent design,completely solves the problem of noise of small switches in the office environment.
【6KV Lightning Protection】PULVISION Ethernet switch designed with lightning protection, it can withstand 6000 volts or more lightning, and prevent circuit failure. Built-in protection circuit. When a short circuit or overload occurs, the port will automatically fuse to protect the safe operation of the switch and other ports. Protects products and devices from damage even in bad weather. more secure and reliable, with a wide range of applications, including shopping malls, communities, schools, hospitals, parks, hotels, small and medium-sized enterprises, etc.
