10 Port Mini PoE Switch with 8 PoE+, 2 Uplink, 10/100Mbps Ethernet, 120W 802.3af/at PoE, Fanless Metal Plug & Play PoE+ YuLinca Network Switch

Price: $25.86
(as of Aug 28, 2025 13:52:47 UTC – Details)

Product description

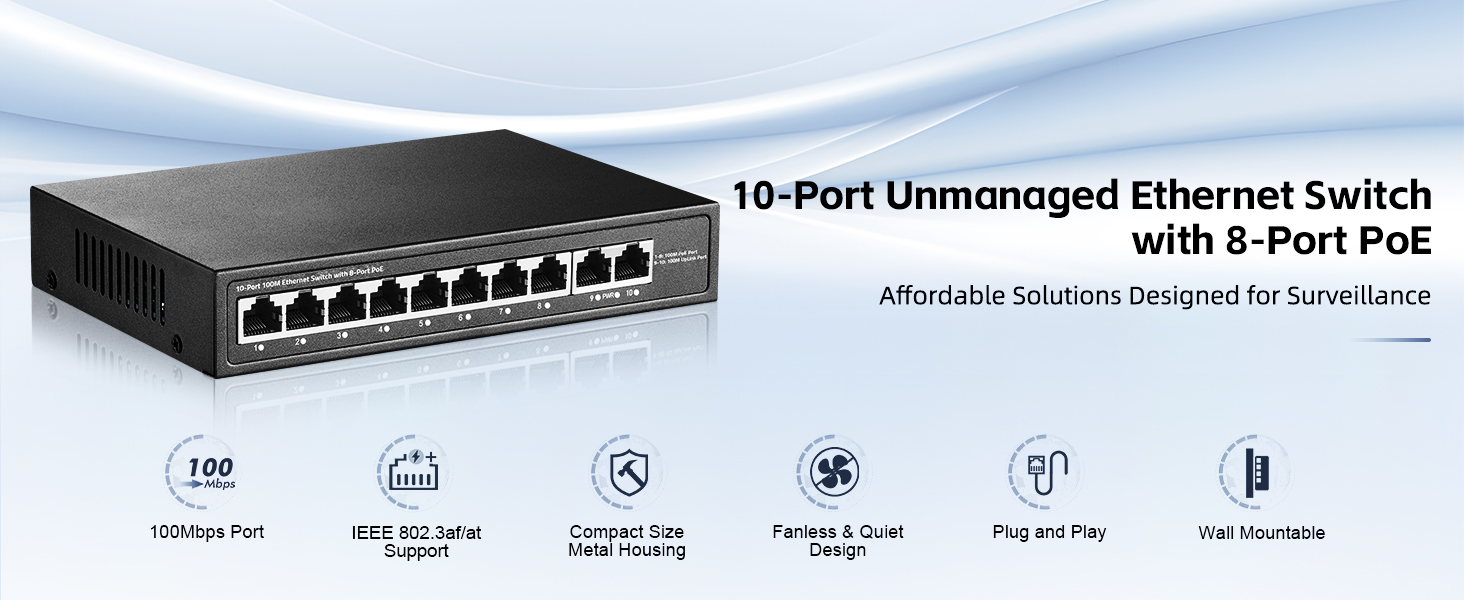

F102FP is a 10 ports 100Mbps ethernet switch with 8 ports PoE, The PoE ports fully complies with IEEE 802.3af/at PoE standards with up to 30W power supply. Plug and Play, It can easily expand your network to where there are no power lines, It is ideal for connecting IP Cameras, APs.

Smart PoE+

With PoE devices auto detection capability, the PoE switch is able to verify whether the connected device is IEEE802.3af/at compliant.

100Mbps Ports

8x 100M PoE and 2x100M uplink ports configuration, suitable for applications that also require high data throughput due to the use of high-resolution camera.

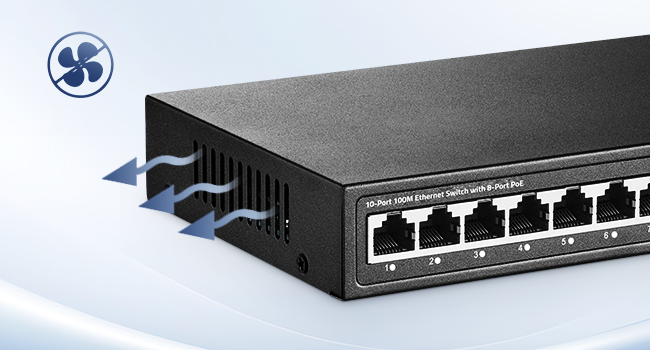

Fanless & Noiseless Design

Fanless design ensure noiseless operation without disruption your quiet home or office,and greater reliability over time with fewer parts to fail.

Plug and Play

The PoE switch is designed to simply increase port density. Installation is plug and play with no special requirements or configuration needed.

Lighting Protection

The switch features with 4KV surge protection, can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.

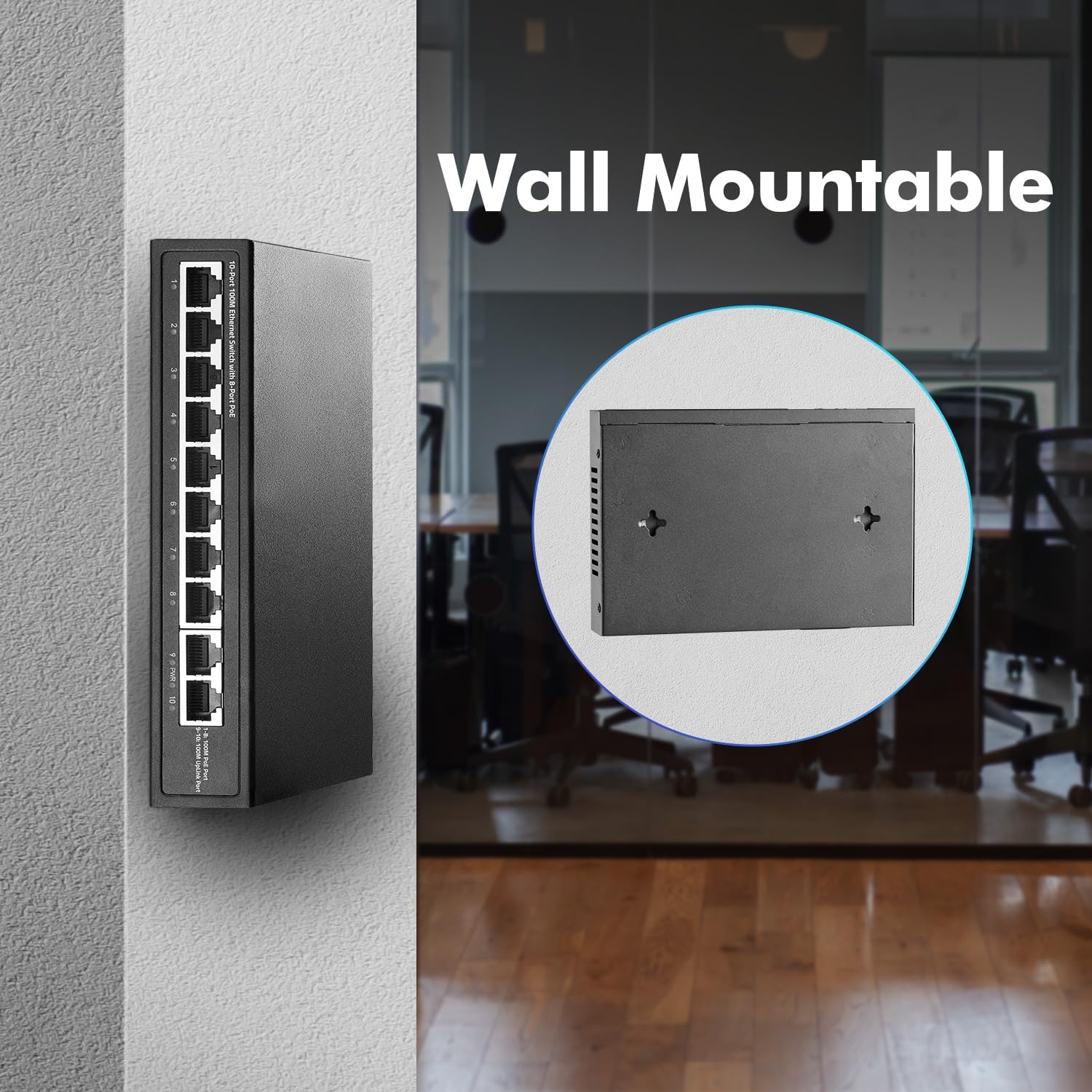

Desktop and Wall Mount

The wall-mounting option gives you more choices when you comes to finding a suitable mounting location.

Product Specifications

Model F102FP Product Name 10-Port 100M Unmanaged Ethernet Switch with 8-Port PoE Ethernet 8* 10M/100Mbps PoE Ethernet Ports + 2* 10M/100Mbps Uplink Ethernet Port Bandwidth 2Gbps Pack forward rate 1.488Mpps Memory cache 448K MAC address 2K Jumbo Frame 2048bytes Network Protocol IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3x (Flow control) PoE Protocol IEEE802.3af(15.4W), IEEE802.3at(30W) Network Medium 10Base-T : Cat3, 4, 5 or above UTP(≤100m), 100Base-TX : Cat5 or above UTP(≤100m) Working Environment Working Temperature: -10~50°C, Storage Temperature: -40~70°C, Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing Indicator PWR (Power), 1-10 Green Light (Link&Data) Structure Size Product size: 180*120*32mm, Product weight: 0.71KG Power Voltage Input voltage :AC100-240V, Power supply: 52V/2.3A (120W)

【10×100M Ports】Includes 8 PoE+ ports and 2 Ethernet UpLink ports, all ports up to 10/100Mbps speed. The 2 uplink ports can be connected to different networks or devices, such as routers, NVRs, etc.

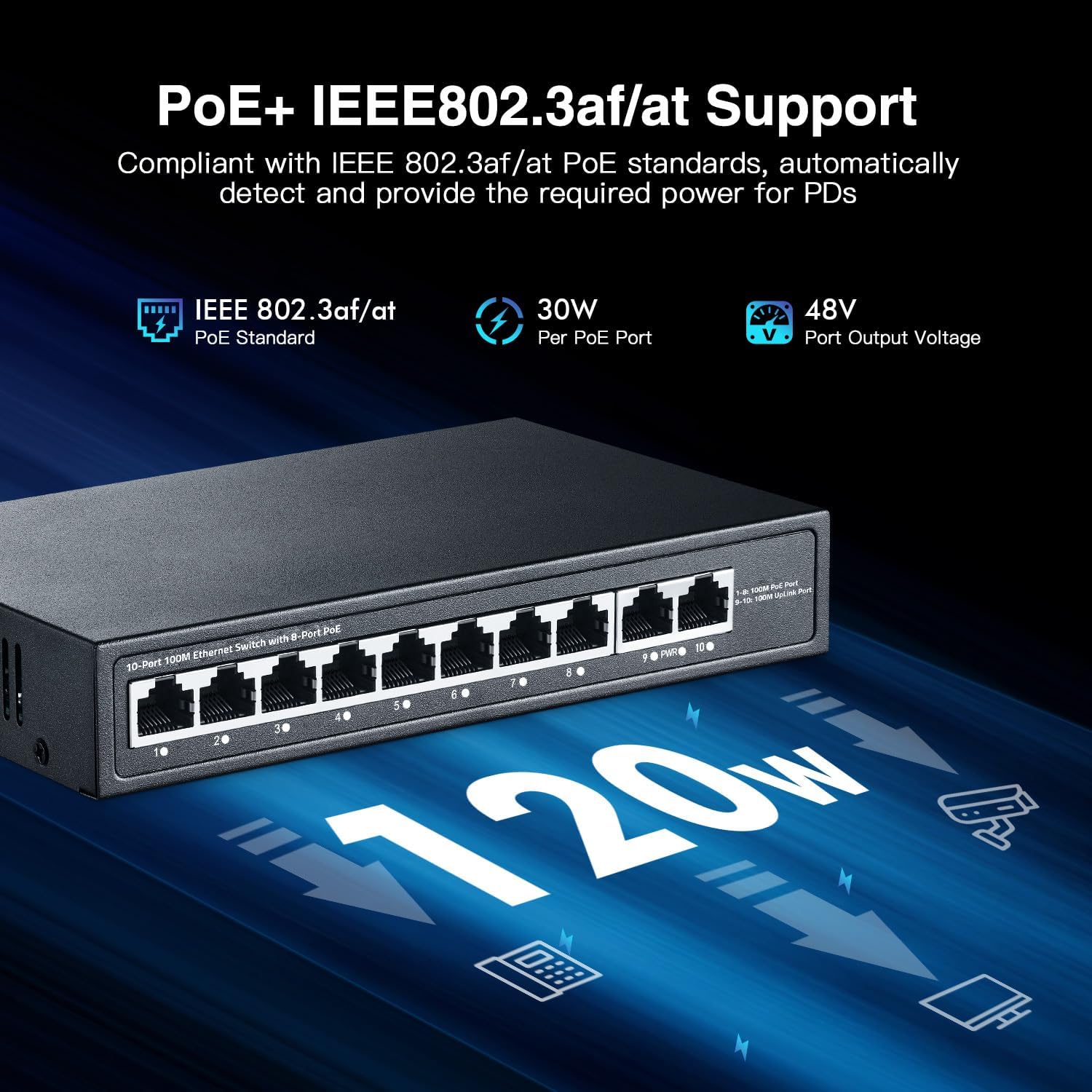

【IEEE 802.3af/at PoE】Ports 1-8 support ieee802.3af/at PoE, max 30w; Built in power supply, 120W overall, typical value 48V. Compatible with non-POE devices to provide network *Please note: it will not supply power to passive 24V PoE and NON-PoE devices.*
【Easy to Install】Built-in power module, just connect the power cord, and connect to the device through the network cable, no other configuration is required, Plug & Play. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports.
【Unmanaged Plug and Play】Supports automatic detection of power supply for POE devices, port auto-negotiation, built-in power module, just connect the power cord, and connect to the device through the network cable, no other configuration is required, the LED indicator on the panel shows the status, the use and maintenance are very simple.
【Widely used】Min size, metal case, fanless silent, double side vents; support desktop and wall mounting. Stable POE and switching chips, can be used in various networks of home,office and business, including IP cameras, Wireless Access Point, Computer Networks devices, etc.
